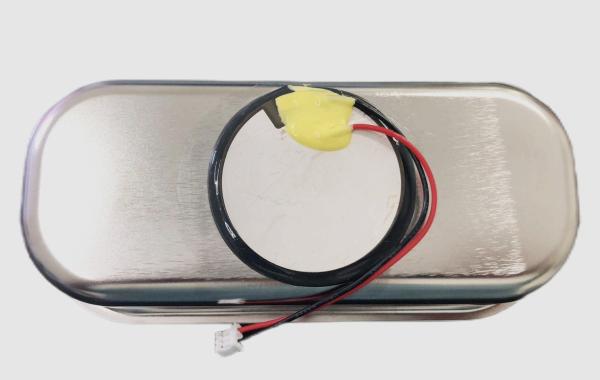

Product Description:
Our Transducer for Ultrasonic Cleaning is customizable, making it
suitable for a wide range of applications. Whether you need it for
industrial or commercial use, we can tailor it to meet your
specific needs.
With a Qm of ≥50, this transducer is highly efficient and effective
at cleaning even the most stubborn of dirt and grime. Its
capacitance of 8 NF ±5% ensures that it operates at optimal levels,
providing consistent and reliable performance every time.
The transducer operates at an optimal temperature range of 0-50°C,
making it suitable for use in a variety of environments. Whether
you need to clean delicate medical equipment or heavy-duty
industrial components, this transducer can handle it all.
If you're looking for an Advanced Transducer for Cleaning, look no
further than our ultrasonic cleaning transducer. With its
high-quality construction, customizable design, and efficient
performance, it's the perfect choice for all your cleaning needs.
Technical Parameters:
| Product Attribute | Value |
| Product Name | Industrial Cleaning Transducer |
| Operating Temperature | 0-50°C |
| Installation | Easy |
| Product Size | 170.2 X 77.2 X 40 Mm |
| Resonant Frequency | 49kHz±5% |
| Piezo Size | 50 X 2.6 Mm |
| Supply voltage at transducer | 3 - 48 V |
| Material | Stainless Steel |
| Weight | 137.5 G |
| Resonance Impedance | <250 Ω |
| Input power | 30 - 60 W |
| Product Name | Precision Cleaning Transducer |
| Product Name | Transducer for Ultrasonic Cleaning |
Applications:
The HJ-300ML Ultrasonic Cleaning Transducer is ideal for industrial
cleaning applications, where high-performance and efficiency are
critical. The operating temperature range of 0-50°C makes it
suitable for use in a variety of environments. The transducer's Qm
value of ≥50 ensures that it can effectively clean even the most
stubborn dirt and grime from surfaces.
The HJ-300ML Ultrasonic Cleaning Transducer is constructed using
stainless steel, which provides durability and resistance to
corrosion, ensuring that it can withstand even the harshest
cleaning environments. The transducer is designed for ultrasonic
vibration cleaning, which is a highly effective method for removing
dirt, grease, and other contaminants from a variety of surfaces,
including metals, plastics, and glass.
This product is suitable for a wide range of cleaning applications,
including precision cleaning of parts, degreasing, removal of rust
and scale, and cleaning of electronic components. Its versatility
makes it ideal for use in industries such as automotive, aerospace,
medical, and electronics manufacturing.
The HJ-300ML Ultrasonic Cleaning Transducer is a reliable and
efficient solution for all your industrial cleaning needs. Its
superior performance and durability make it the perfect choice for
anyone looking for an industrial cleaning transducer that can
provide exceptional results, time and time again.
P
This list is almost endless. Provided the product is non porous and
can normally be
immersed in water, they can be thoroughly cleaned. Here are some
examples:
1. Jewelry especially gold, silver&platinum
2. Watchstraps
3. Coins and other collectibles
4. Small PCB Boards
5. Toothbrushes & Dentures
6. Electrical components
7. Make-up cases
8. Tattoo needles
9. Knives, bayonets and other militaria
Ultrasonic cleaning is not recommended to be used to clean the
following gemstones:
Opal, Pearl, Emerald, Tanzanite, Malachite, Turquoise, Lapis and
Coral.
Packing and Shipping:
Product Name: Ultrasonic Cleaning Transducer
Product Description: This ultrasonic cleaning transducer is
designed to efficiently remove dirt and grime from a variety of
surfaces. It operates at a high frequency to produce powerful waves
that penetrate deep into the material being cleaned.
Product Features:
- High-frequency operation
- Powerful cleaning action
- Efficient dirt and grime removal
- Durable construction
Package Contents:
- 1 Ultrasonic Cleaning Transducer
Shipping Information:
- Shipping Method: Standard Ground
- Estimated Delivery Time: Depend on quantity
- Trading term: Ex.works
