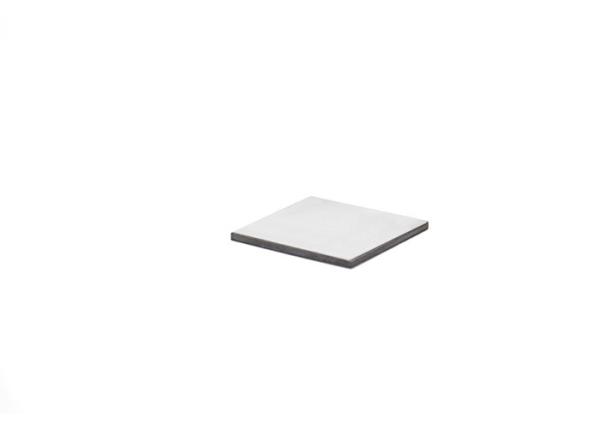

8x4.5x1.5mm 300pf P44 165KHz Piezo Ceramic Plate

Ask Lasest Price
Brand Name :	Yujie
Model Number :	8x4.5x1.5
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	1000 Piece/Pieces per Month
Delivery Time :	3~30 working days

Add to Cart

Product Details
Company Profile

8x4.5x1.5mm 300pf P44 165KHz Piezo Ceramic Plate

Piezoelectric Ceramics Small Rectangular PZT Element Transducer 8x4.5x1.5mm 165KHz

1. Product description

Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.

2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.

3. Applications for ceramics

Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography

Specifications:

Material:	P44
Capacitance:	300pf +/-15%
Frequency:	165 khz+/-5%
Impedance:	<250 Ω
Kr:	>45%
tgS	<2%
Dimension:	Length: 8mm,Width: 4.5mm,Height: 1.5 mm

We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us!
