ISO9001 P51 2MHz Spherical Crown PZT Ceramic Plate

PZT Ceramic with Diameter SØ15 x R11.18mm 2MHz Customized

1. Product description

Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.

2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.

3. Applications for ceramics

Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography

8. Focus industry

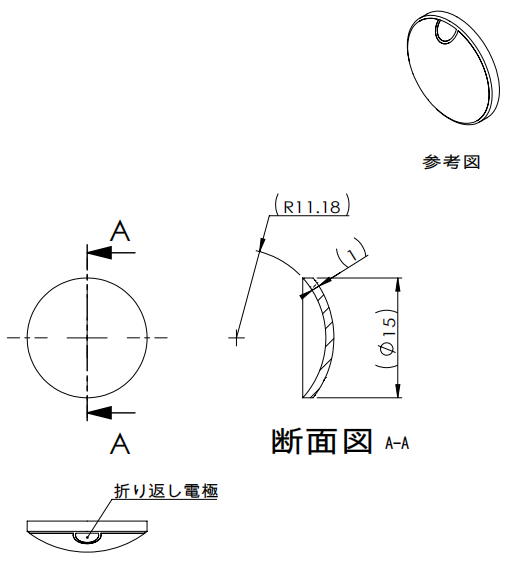

SØ15xR11.18mm 2MHz

Electrical Characteristics:

NO.	Ft(MHz)	R(Ohm)	C(nF
1	2.037	15	1.522
2	2.050	14	1.574
3	2.062	8.9	1.618
4	2.032	12	1.559
5	2.032	9.3	1.560
6	2.040	15	1.537
7	2.037	9.4	1.546
8	2.047	8.1	1.546
9	2.022	16	1.575
10	2.037	10.3	1.558
