    M30 Pipe Instruments Piezo Ceramic Ultrasonic Transducer For Level Meter

    Ask Lasest Price
    Model Number : UM2000-30GM-V1
    Price : Negotiable
    Brand Name : Yujie
    Certification : ISO9001
    Payment Terms : Western Union, L/C, T/T
    Delivery Time : 3~20 working days
    • Product Details
    • Company Profile

    M30 Pipe Instruments Piezo Ceramic Ultrasonic Transducer For Level Meter

    PZT Ultrasonic Transducer Of M30 Pipe Instruments For Level Meter


    Technical data
    General Specifications
    Sensing distance160…2000mm
    Adjustment range160…2000mm
    Unusable area0…80mm
    Standard target plate100mm×100mm
    Transducer frequencyAbout 112kHz
    Response delayAbout 195ms
    Indicators/Operating means
    LED bluePower on
    LED yellowFlashing:program function object detected
    LED redpermanently red: Error Red,flashing:object not detected
    Electrical specifications
    Operating voltage UB10…30VDC,ripple10%ss
    No-load supply current≤20mA
    Input
    Input type
    Output
    Output type1 analogue output 0…10V/0…20mA
    Rated operational current200mA,short-circuit/overload protected
    Default setting80mm----0V/4mA, 2000mm----10V/20mA
    Voltage drop≤ 3V
    Repeat accuracy≤ 1%
    Switching frequency f≤ 4HZ
    Range hysteresis H1% of the set operating distance
    Temperature influence± 1.5% of full-scale value
    Ambient conditions
    Ambient temperature-25…70℃(248...343K)
    Storage temperature-40…85℃(233...358K)
    Mechanical specifications
    Protection gradeIP67
    ConnectionV1 connector(M12×1),4-pin
    Material Housingbrass,nickel-plated
    Transducer

    epoxy resin/hollow glass sphere mixture;

    foam polyurethane,cover PBT

    Weight100g
    Compliance with standards and di
    Standard conformity

    EN 60947-5-2:2007

    IEC 60947-5-2:2007


    Installation conditions

    If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

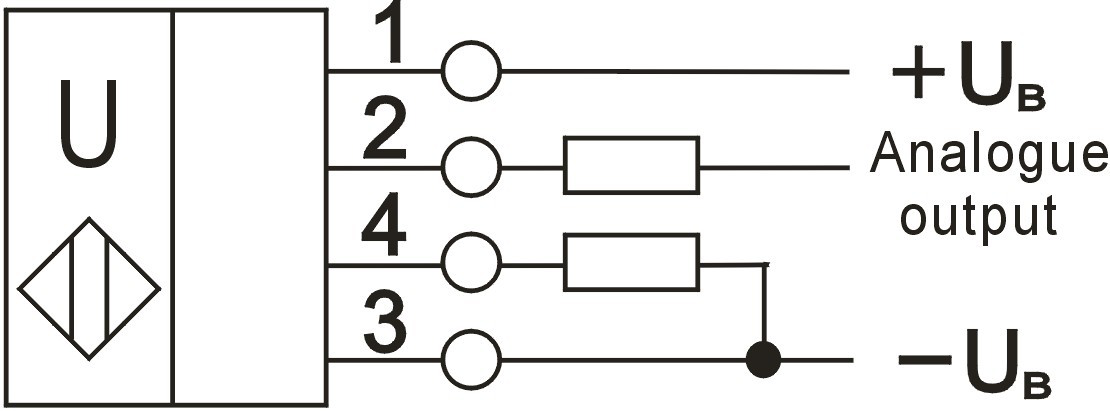

    V1 Connector
