    IP65 Ultrasonic Flow Meter Transducer , 200KHz Ultrasonic Gas Transducer

    Ask Lasest Price
    Brand Name : Yujie
    Model Number : HJ-GF200KH
    Supply Ability : 10000 Piece/Pieces per Month
    Price : Negotiable
    Certification : ISO9001
    Payment Terms : T/T, Western Union
    Delivery Time : 3~30 working days
    • Product Details
    • Company Profile

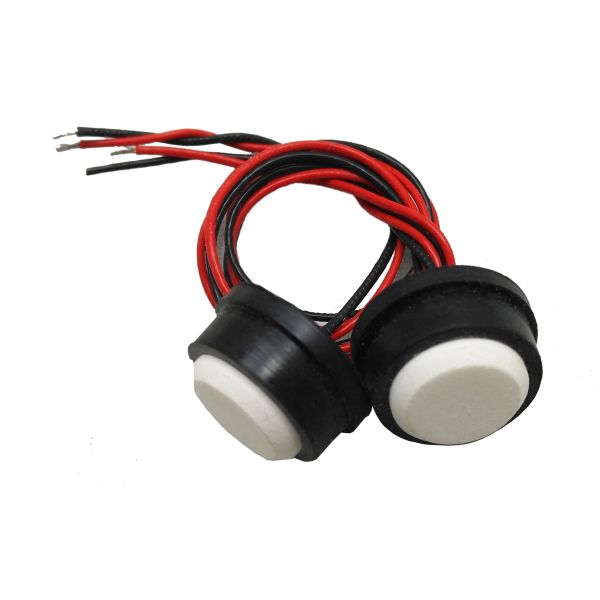

    IP65 Ultrasonic Flow Meter Transducer , 200KHz Ultrasonic Gas Transducer

    Ultrasonic Flow Meter Transducer With 200KHz For Gas Flow Meter

    Specifications:

    ModelHJ-GF200KH
    Frequency(kHz)200KHZ±4%
    Bandwidth20kHz

    General sensitivity

    0 dB=10 Vp-p;CW; Distance:16cm

    -65dB min
    Beam width(-3dB full angle)12±2°
    Static capacitance2000PF±20%
    Min. parallel resistance200Ω±30%
    Max. driving Voltage(2% duty cycle tone burst)<100V
    Operating temperature-20~70℃
    Protection/waterproof levelIP65

    All specification taken typical at 25℃
