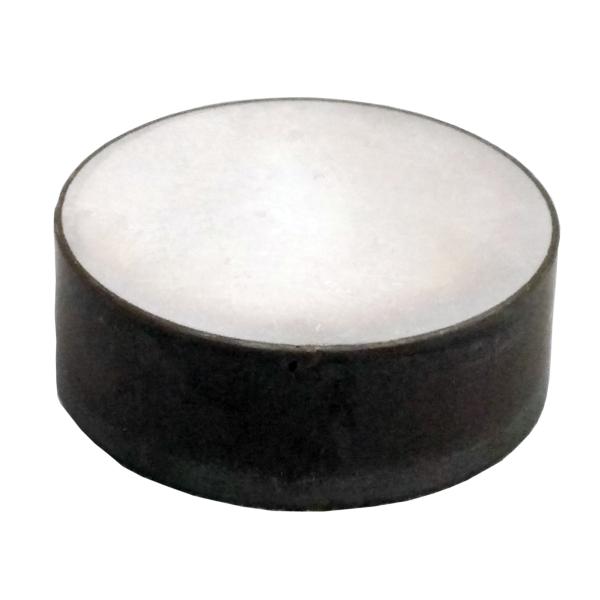

Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer

Ask Lasest Price
Brand Name :	YUJIE
Model Number :	27.4x10.2mm
Supply Ability :	100000 Piece/Pieces per Month
Price :	Negotiable
Certification :	ISO9001
Payment Terms :	T/T, Western Union
Delivery Time :	3~30 working days

Add to Cart

Product Details
Company Profile

Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer

Piezoelectric Disc Of Diameter 27.4 mm For Fishing Finder Transducer

1. Product description

Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.

2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.

3. Applications for ceramics

Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography

Piezoelectric Ceramic Element

Specifications:

Dimension:	27.4x10.2mm
Piezoelectric material :	P-44
Resonant Frequency :	200KHz ± 5%
Coupling Factor (KP) :	>0.35%
Capacitance (Cp):	700 PF ± 20%
Dielectric loss (tgδ):	< 0.5%
Resonant Resistance (R) :	< 35ohm

Applications:

Fish Finder,

Depth Measure.
