Piezo Ring With Diameter 30mm Piezoelectric Ceramic For Cleaning
Transducer
1. Product description
Piezoelectricity is a type of electricity that occurs when
materials possessing piezoelectric properties are exposed to
pressure or stress. Examples of these materials are ceramics, also
called piezoceramics , and crystals.
Piezoelectric Ceramics (piezoceramics), such as Piezoelectric
Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic
Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic
Cylinder and Piezoelectric Ceramic Square/Rectangular.
2. Brief description of piezo ceramic element & Attributive
Characters
1. Electrode form/ Modulating: External drive (diode); Self drive
(transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.
3. Applications for ceramics
Piezo Ceramic Element: Applications (Piezoceramics element; Piezo
diaphragm, piezo plate)
1. For sound making:Clocks,Calculators,Telephones,Washing
machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope
reflector,pedometer, car alarm sensor.
3. For face lift beauty devices.
4. For medical devices.
5. For distance measuring.
6.Hydrophone
7.Oceanography
SPECIFICATIONS
Piezoelectric Ceramic Element
| Electrical Characteristics: |
| Unit:mm Tolerance: | ± 0.2mm |

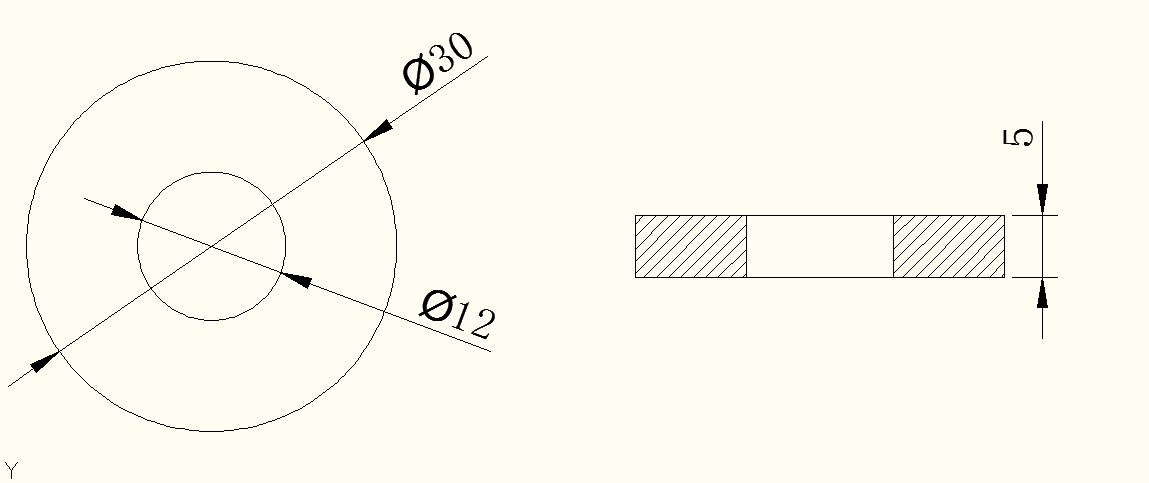

| Dimension: | 30x12x5mm |
| Piezoelectric material : | P-81 |
| Resonant Frequency : | 55KHZ ± 5% |
| Resonant Resistance (R): | <25ohm |
| Coupling Factor (Kr) : | >45% |
| Capacitance (Cp): | 1100 PF ± 15% |
| Dielectric loss (tgδ) : | < 1% |
We can provide high quality and high performance product to
customer
and according to customer requested to customise different
dimension
and shape. welcome your telephone and mail please don't hesitate to
ask us .
