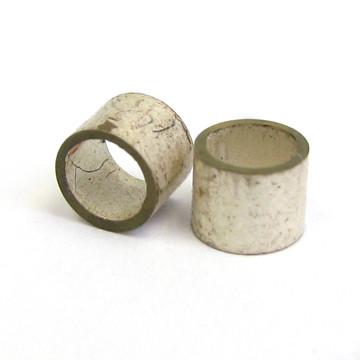

High Precision Piezo Tube 17.44KHz Long Service Life For Hydrophone
Application ODM OEM Available
1. Product description
Piezoelectricity is a type of electricity that occurs when
materials possessing piezoelectric properties are exposed to
pressure or stress. Examples of these materials are ceramics, also
called piezoceramics , and crystals.
Piezoelectric Ceramics (piezoceramics), such as Piezoelectric
Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic
Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic
Cylinder and Piezoelectric Ceramic Square/Rectangular.
2. Brief description of piezo ceramic element & Attributive
Characters
1. Electrode form/ Modulating: External drive (diode); Self drive
(transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.
3. Applications for ceramics
Piezo Ceramic Element: Applications (Piezoceramics element; Piezo
diaphragm, piezo plate)
1. For sound making:Clocks,Calculators,Telephones,Washing
machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope
reflector,pedometer, car alarm sensor.
3. For face lift beauty devices.
4. For medical devices.
5. For distance measuring.
6. Hydrophone
7. Oceanography
Specifications:
| Dimension: | 54.5x47x40 mm |
| Piezoelectric material : | P-51 |
| Resonant Frequency : | 17.44 KHz ± 5% |
| Coupling Factor (KP) : | >50% |
| Capacitance (Cp): | 37700 PF ± 15% |
| Dielectric loss (tgδ): | < 2% |
| Resonant Resistance (R) : | < 20 ohm |
Applications:
Hydrophone
We can offer high quality and high performance to customer.
As also can according to customer requested to customise different
dimension and configuration if interested in our product please
don't hesitate to contact us!
FAQ:
Q: how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: what can you buy from us?
Ultrasonic Transducer,Ultrasonic Equipment,Piezoelectric
Ceramic,Ultrasonic Generator,ultrasonic equipment parts
Q: why should you buy from us not from other suppliers?
The company has more than ten years of experience in design and
development, product variety, wide range of applications,
large-scale production, rapid delivery, quality system improvement,
process control is guaranteed.
Q: How soon can we get the detailed quotation?
Firstly please kindly tell us the size, material and demand
quantity, your drawing with technical requirements is best.
If you only have samples, you can also send us.
We will quote our best price in 24 hours, for simple items, we will
quote in 1 hour.
Q: what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
