    High Precision Piezoceramic Cylinder 43.5x37.2x25.25mm Long Service Life

    Ask Lasest Price
    Brand Name : Yujie
    Model Number : 43.5/37.2X25.25
    Supply Ability : 1000 Piece/Pieces per Month
    Price : Negotiable
    Certification : ISO9001
    Payment Terms : T/T, Western Union
    Delivery Time : 3~30 working days
    • Product Details
    • Company Profile

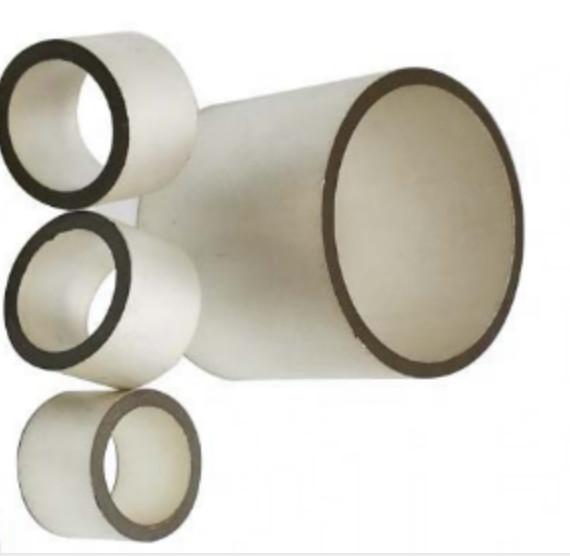

    High Precision Piezoceramic Cylinder 43.5x37.2x25.25mm Long Service Life

    Piezoelectric Tube 43.5/37.2X25.25 For Ultrasonic Hydrophone

    1. Product description

    Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

    Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.

    2. Brief description of piezo ceramic element & Attributive Characters

    1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
    2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
    3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
    4. Metal plate type: Silver
    5. Connection terminal: Solder wire or not.

    3. Applications for ceramics

    Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

    1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
    2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

    3. For face lift beauty devices.

    4. For medical devices.

    5. For distance measuring.

    6. Hydrophone

    7. Oceanography

    Specifications:

    Dimension:43.5x37.2x25.25 mm
    Piezoelectric material :P-44B
    Resonant Frequency :25KHz ± 5%
    Coupling Factor (KP) :>50%
    Capacitance (Cp):13000 PF ± 20%
    Dielectric loss (tgδ):< 1%
    Resonant Resistance (R) :< 30 ohm

    Applications:


    Hydrophone

    We can offer high quality and high performance to customer.

    As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us
